XK9192-DS11 weight sensor indicator
XK9192-DS11 weight sensor indicator.pdf
1.introduction

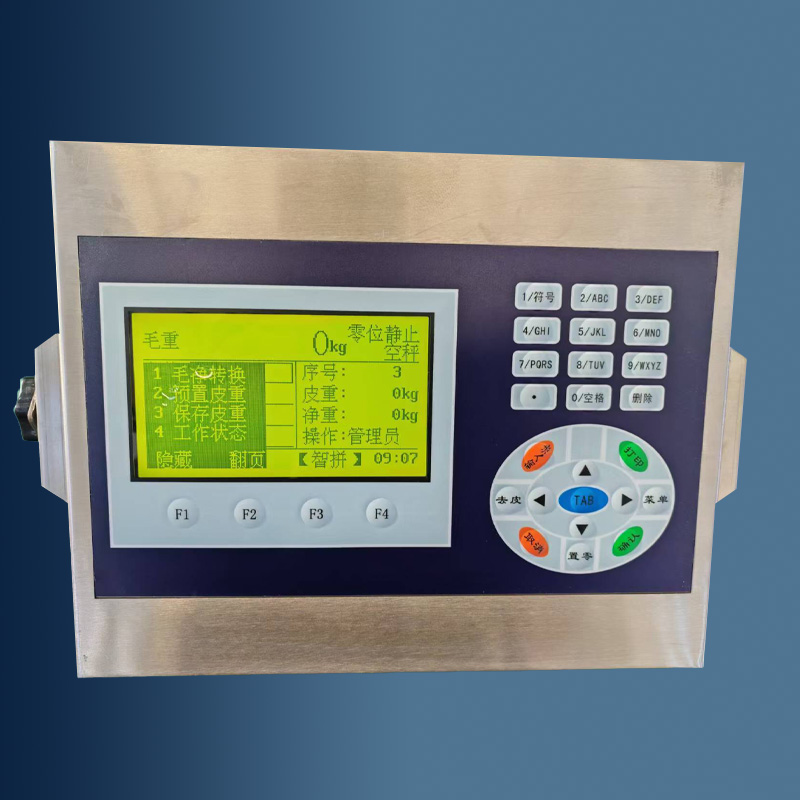

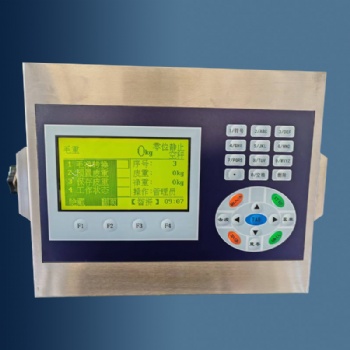

l Dot matrix LCD display screen
l real time operating system, with multi-task processing functions, data processing quick
l record 10000 group weighing data. Weighing data includes serial No., vehicle No., goods, gross weight, tare weight, net weight, date of entry, time of entry, ex-factory date, ex-factory time, operator, company, remarks

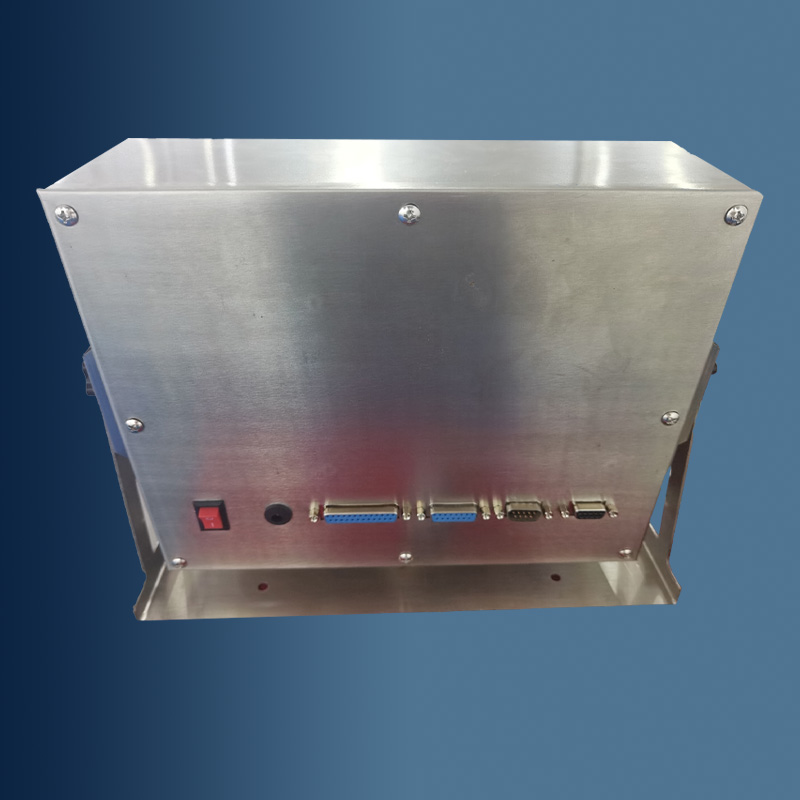

l different connecting port:RS-232C/RS-485/1pc of 20mA current loop, Centronics parallel printing interface, serial printing interface
l use two chips to save parameters. A manual input interface. No need to calibrate when change indicator.
l Multiple operator account can be set.
2.specification
Technical parameters | ||
Digital load cell interface: RS485 | Max. distance of digital load cell: 1000m | |
Qty. of digital load cell: ≤24 | Digital load cell power supply:DC12V or DC8V,500MA | |
Power supply:DC12V | Working temperature:-10℃ to +40℃ | |
Working humidity: 80%RH | Power: around 30W | |
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
