JFL-DC1 load cell force sensor pancake
JFL-DC1 load cell force sensor pancake.pdf
specification
Item | Spec. | |
1 | Model | JFL-DC1 |
2 | Capacity | 5KN,10KN,20KN,50KN,100KN |
3 | Accuracy | 0.05%F.S |
4 | Output sensitivity | 2.0 MV/V |
5 | Creep | 0.05%F.S/30min |
6 | Zero-point output | ±1%F.S |
7 | Temperature effect on zero | ±0.05%F.S/10℃ |
8 | Temperature effect on output | ±0.05%F.S/10℃ |
9 | Working temperature | -10 to +65℃ |
10 | Input resistance | 375±5Ω |
11 | Output resistance | 350±3Ω |
12 | Insulation resistance | ＞5000MΩ |
13 | Safe overload range | 150% |
14 | Excitation voltage | 10VDC |
15 | Material | Good quality alloy steel |
16 | Wire connection | Power +(red), power –(black), signal + (green), signal –(white) |

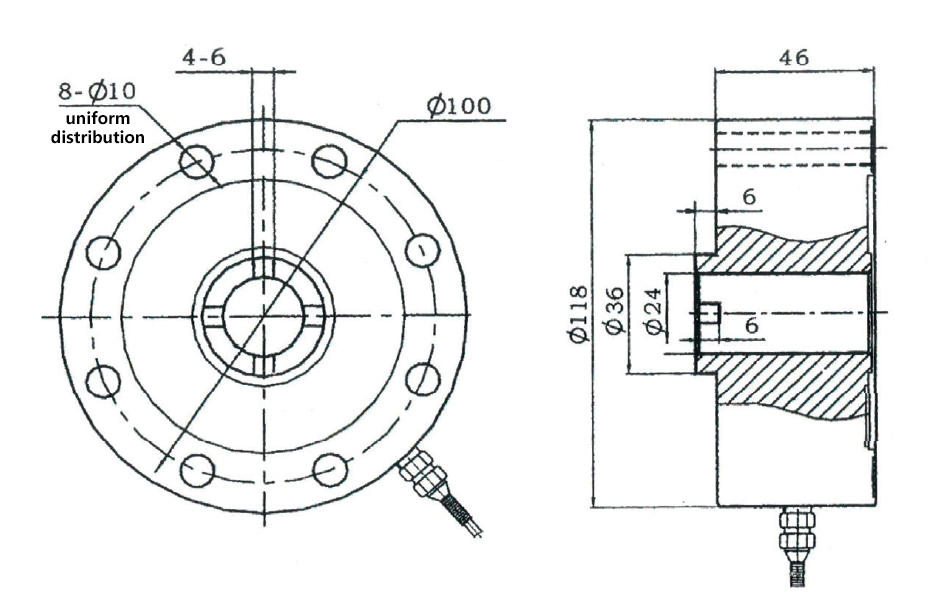

size information
Force sensor load cell,Load cell for force measurement,Precision force sensor,Industrial force sensor load cell,High-accuracy force sensor,Load cell for force testing,Force measurement load cell,Digital force sensor load cell,Force sensing load cell,Load cell for industrial force applications,Force sensor for weighing systems,Force sensor load cell for testing machines,Load cell for force and weight measurement,High-capacity force sensor load cell,Force measurement sensor for industrial use,Load cell force transducer,Tension and compression force sensor,High-precision force load cell,High-accuracy force sensor load cell for industrial applications,Precision force sensor load cell for weight and force measurement,Reliable load cell for force measurement in testing machines,Force sensor load cell for accurate tension and compression testing,Industrial-grade force sensor load cell for heavy-duty applications,Force sensor load cell for precision weighing and force measurement,Digital load cell for force sensing in manufacturing environments,High-capacity force sensor load cell for industrial force measurement,Force measurement load cell for dynamic and static applications,Compact force sensor load cell for high-precision testing,Tension and compression force sensor load cell for testing equipment,Load cell for force measurement in industrial machines and systems,Force sensor load cell for heavy equipment and machinery testing,Accurate force measurement load cell for industrial force sensing,Force sensor load cell for laboratory testing and research applications
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
