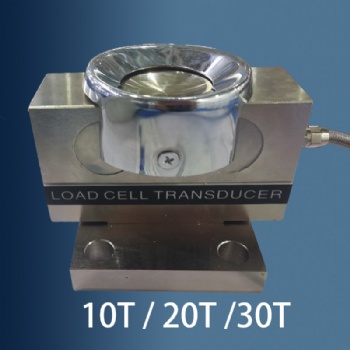

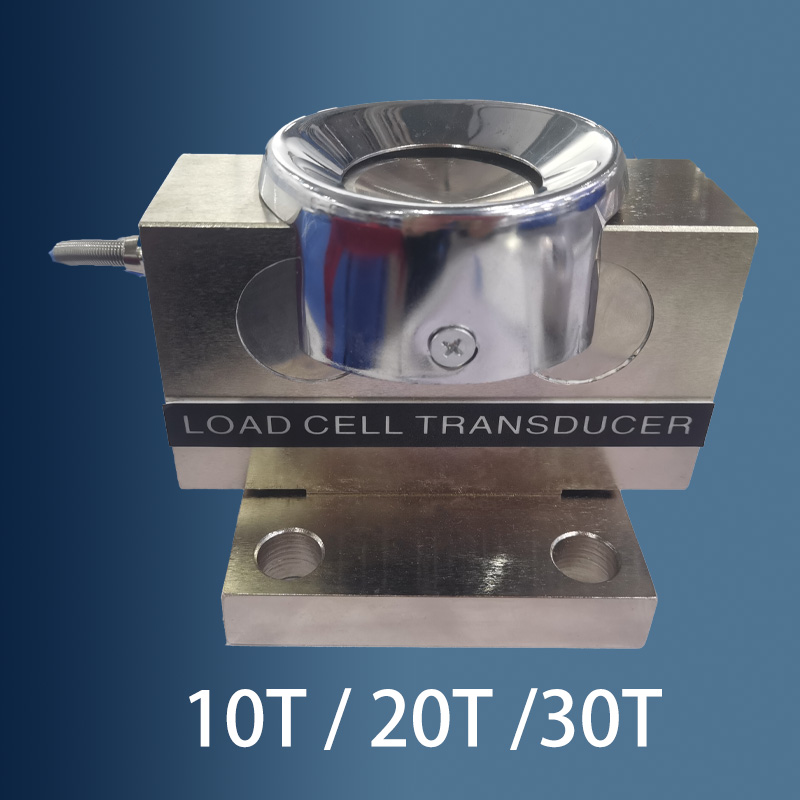

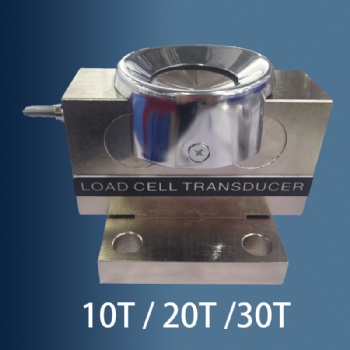

JFL-19QS short bridge weight sensor load cell 10T-30T
JFL-19QS short bridge weight sensor load cell 10T-30T.pdf
1. introductions
l made of alloy steel
l adopting laser welding seal or rubber seal treatment
l nickel plated surface, waterproof, anti-corrosion, suitable for various working conditions
l suitable for truck scale, railway scale, etc.
2.specification
Technical parameters | ||
Model: JFL-19QS | Material: good quality alloy steel | |
Capacity: 10T-30T | Output resistance:700±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 750±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x16m, φ5.7x12m | Insulation resistance:≥5000MΩ | |
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire) | ||

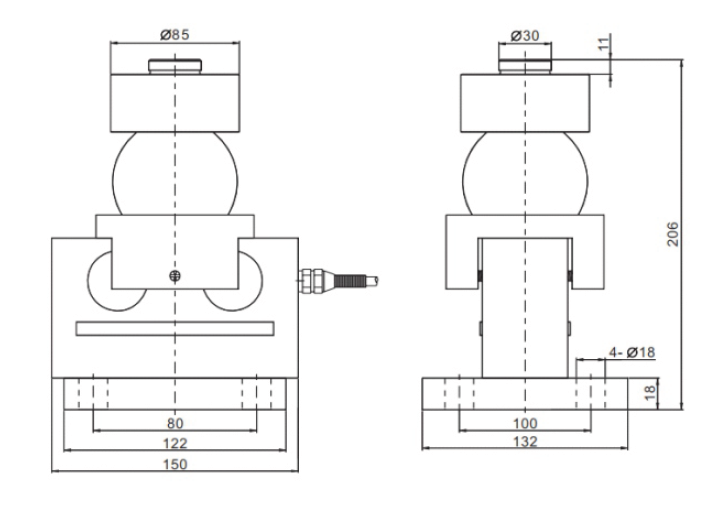

3. size information
4. some cases
china load cells for automotive testing factory price manufacturer, china load cells for construction factory price manufacturer, china weight sensor for manufaturing factory price manufacturer, china weight sensor for agricuture factory price manufacturer, china weight sensor for aerospace factory price manufacturer
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
