JFL-19760 50T column type weight sensor load cell
JFL-19760 50T column type weight sensor load cell.pdf
1. introductions
l Column type
l Simple structure, easy to install, reliable, long working time, high precision, high cost-effectiveness
l Can choose analog or digital model
l suitable for truck scale, platform scale, material tank, railway scale, etc.
2.specification
Technical parameters | ||
Model: JFL-19760 | Material: good quality alloy steel | |
Capacity: 50T | Output resistance:700±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 750±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x18m | Insulation resistance:≥5000MΩ | |
Cable connection: red: Power + black: Power - green: signal + white: signal - | ||

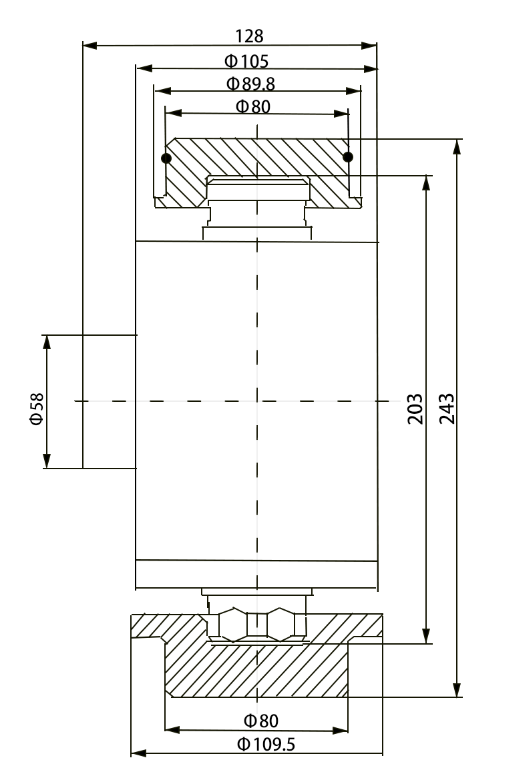

3. size information
4. some cases
china weight sensor for automotive testing factroy price, china weight sensor for construction factory price, china strain gauge technology factory price, china load cell calibration,china load cell wiring factory price
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
