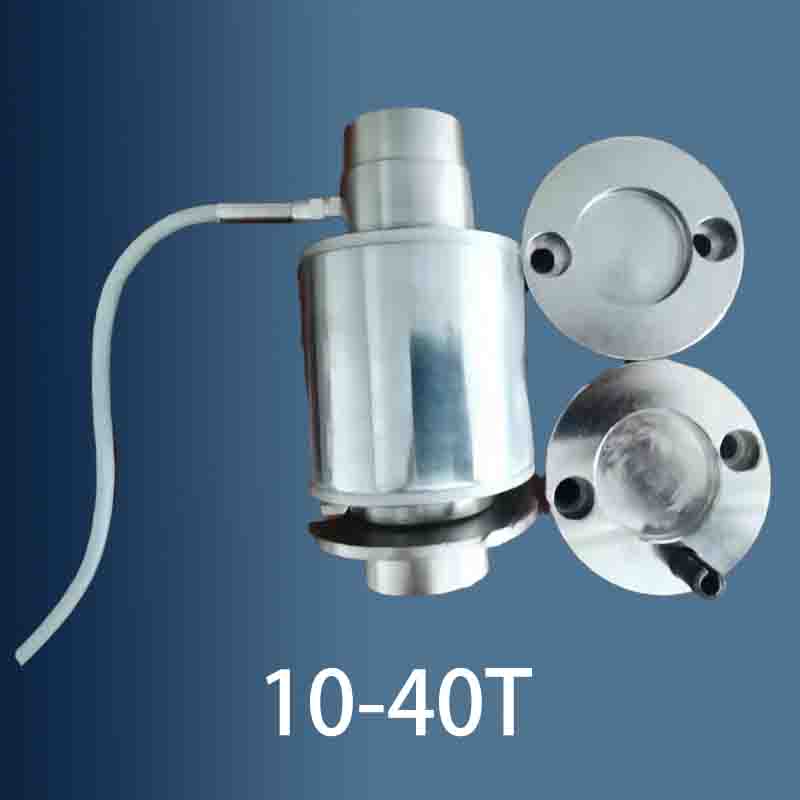

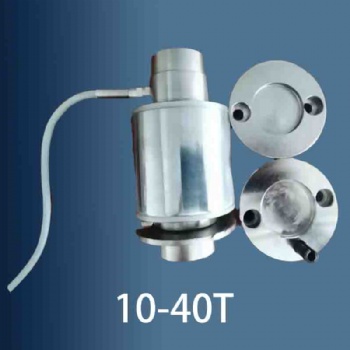

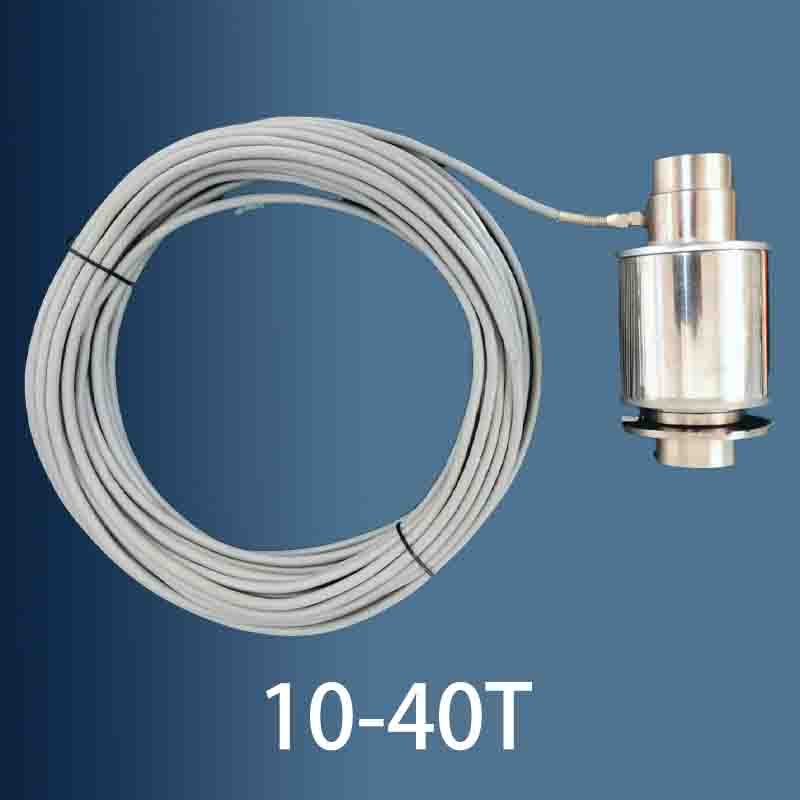

JFL-1818 column type weight sensor load cell 10T-40T
JFL-1818 column type weight sensor load cell 10T-40T.pdf
1. introductions
l Column type
l Simple structure, easy to install, reliable, long working time, high precision, high cost-effectiveness
l Can choose analog or digital model
l suitable for truck scale, platform scale, material tank, railway scale, etc.
2.specification
Technical parameters | ||
Model: JFL-1818 | Material: good quality alloy steel | |
Capacity: 10T-40T | Output resistance:700±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 375±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +80℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x18m | Insulation resistance:≥5000MΩ(50V) | |
Cable connection: red: Power + black: Power - green: signal + white: signal - | ||

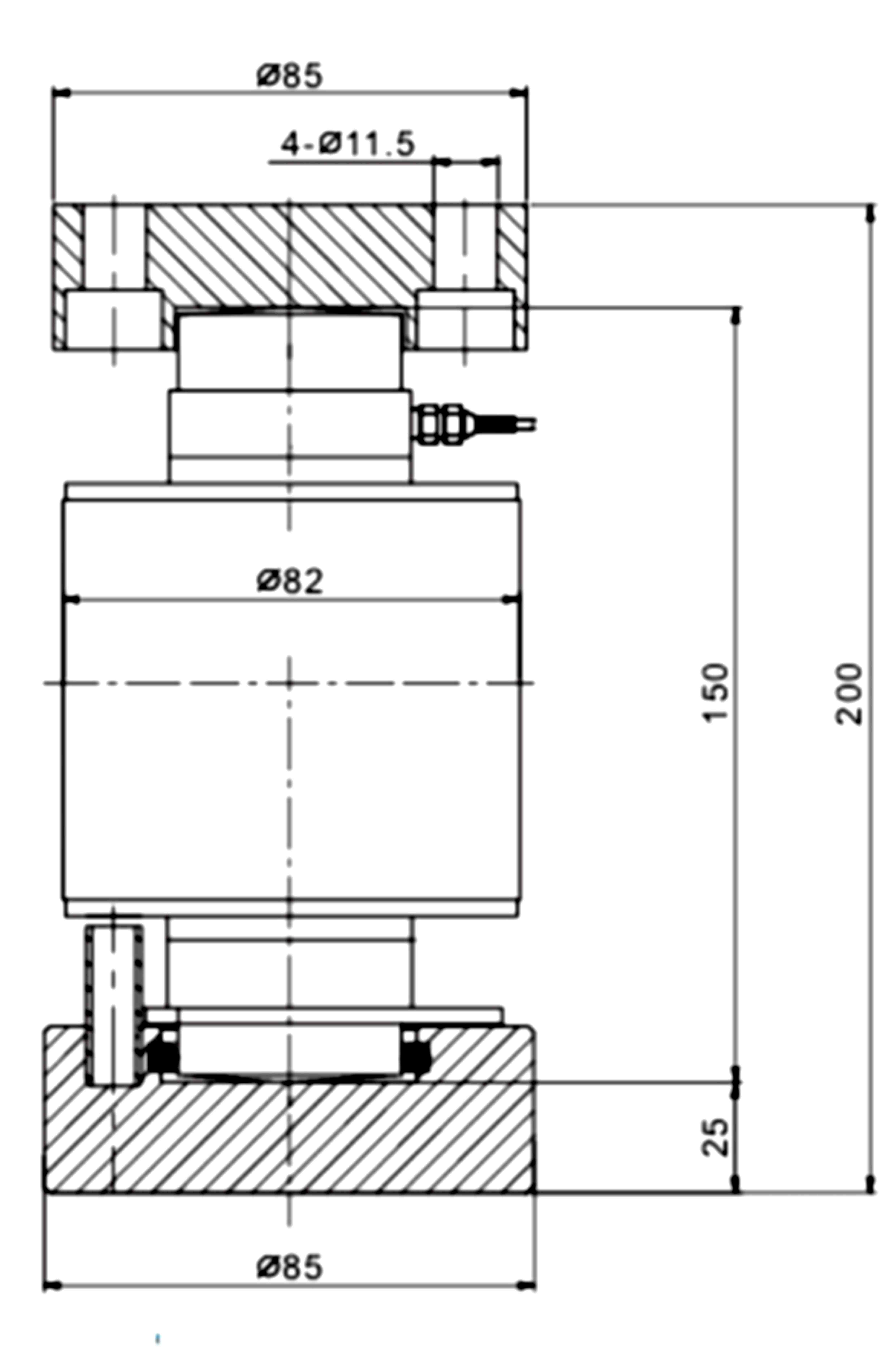

3. size information
4. some cases
china load cell troubleshooting factory price manufacturer, china load cell signal amplifier factory price manufacturer, china load cell indicator factory price manufacturer, china load cell integration factory price manufacturer
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
