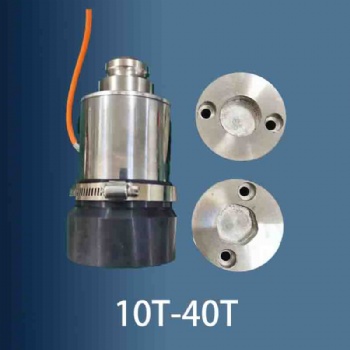

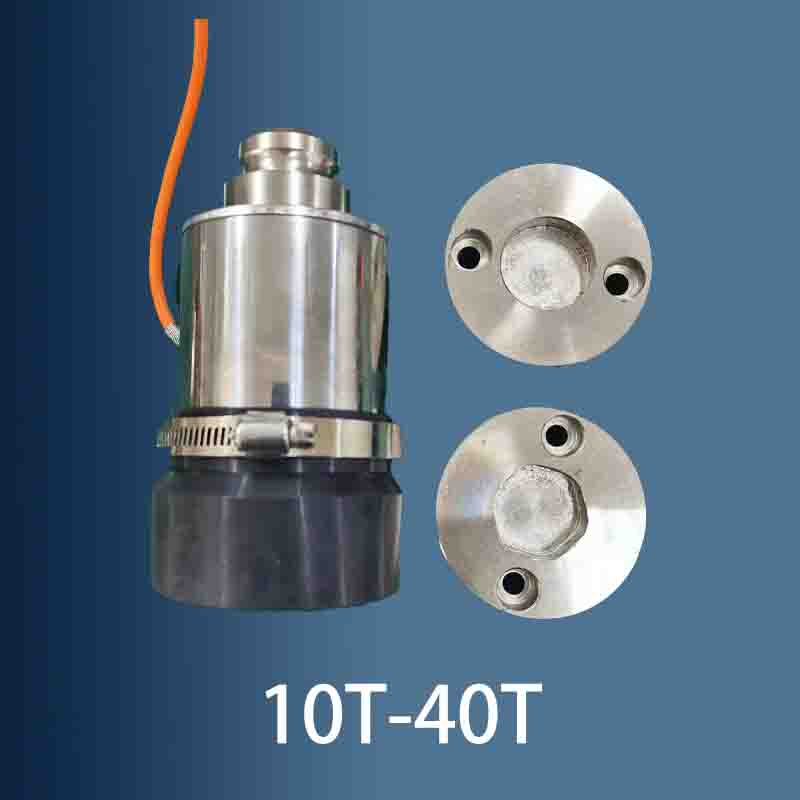

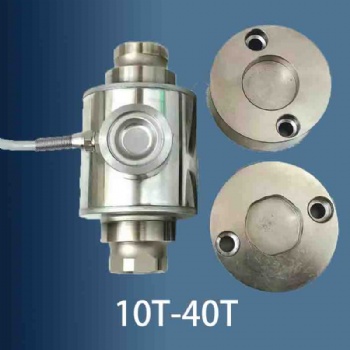

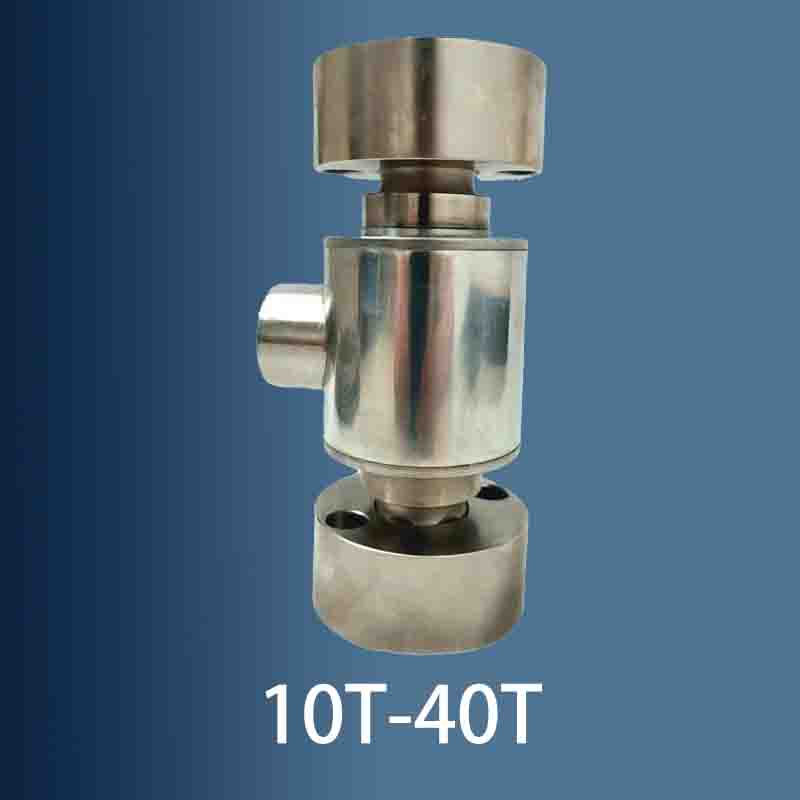

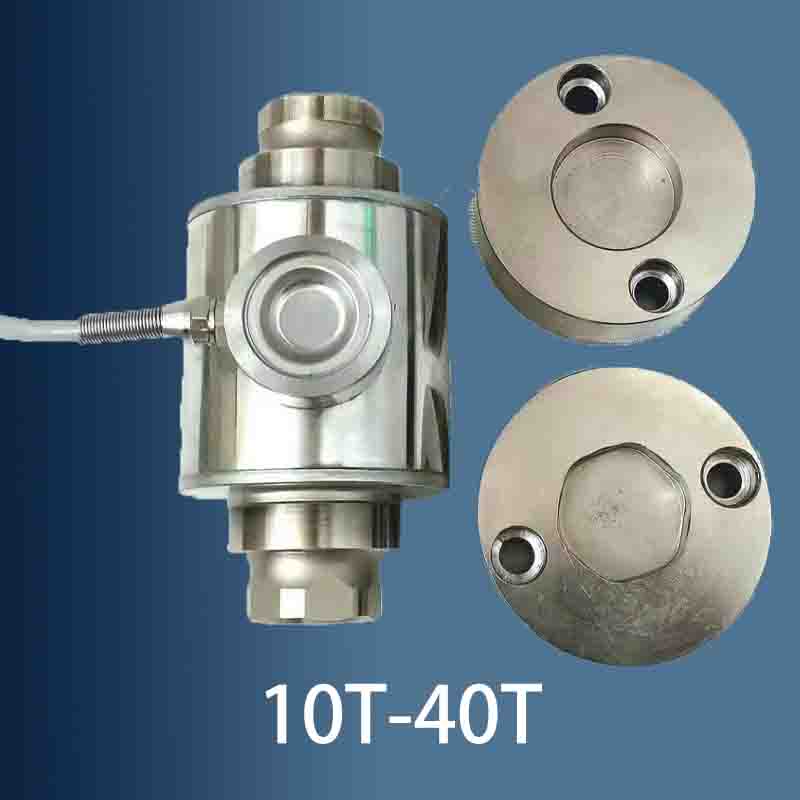

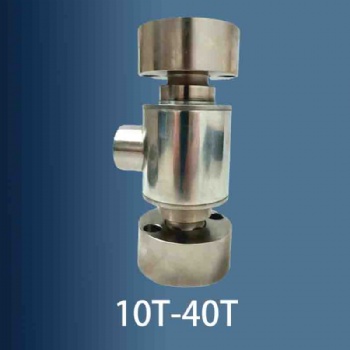

JFL-19782 column type weight sensor load cell 10T-40T
JFL-19782 column type weight sensor load cell 10T-40T.pdf
1. introductions
l Column type
l Simple structure, easy to install, reliable, long working time, high precision, high cost-effectiveness
l Can choose analog or digital model
l suitable for truck scale, platform scale, material tank, railway scale, etc.
2.specification
Technical parameters | ||
Model: JFL-19782 | Material: good quality alloy steel | |
Capacity: 10T-40T | Output resistance:350±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 375±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x18m | Insulation resistance:≥5000MΩ(50V) | |
Cable connection: red: Power + black: Power - green: signal + white: signal - | ||
3. size information
4. some cases
china load cell accuracy class factory price manufacturer vendor, china weight sensor calibration factory price manufacturer, china weight sensor wiring, china weight sensor troubleshooting
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
