JFL-DC2 force sensor load cell

1

Model

JFL-DC2

2

Capacity

5KN,10KN,20KN,50KN,100KN,200KN,300KN

3

Accuracy

0.03%F.S,0.05%F.S

4

Output sensitivity

2.0   MV/V

5

Creep

0.05%F.S/30min

6

Zero-point output

±1%F.S

7

Temperature effect on zero

±0.03%F.S/10℃

8

Temperature effect on output

±0.05%F.S/10℃

9

Working temperature

-10 to +65℃

10

Input resistance

375±5Ω

11

Output resistance

350±3Ω

12

Insulation resistance

＞5000MΩ

13

Safe overload range

150%

14

Excitation voltage

10VDC

15

Material

Good quality alloy steel

16

Wire connection

Power   +(red), power –(black),

signal   + (green), signal –(white)

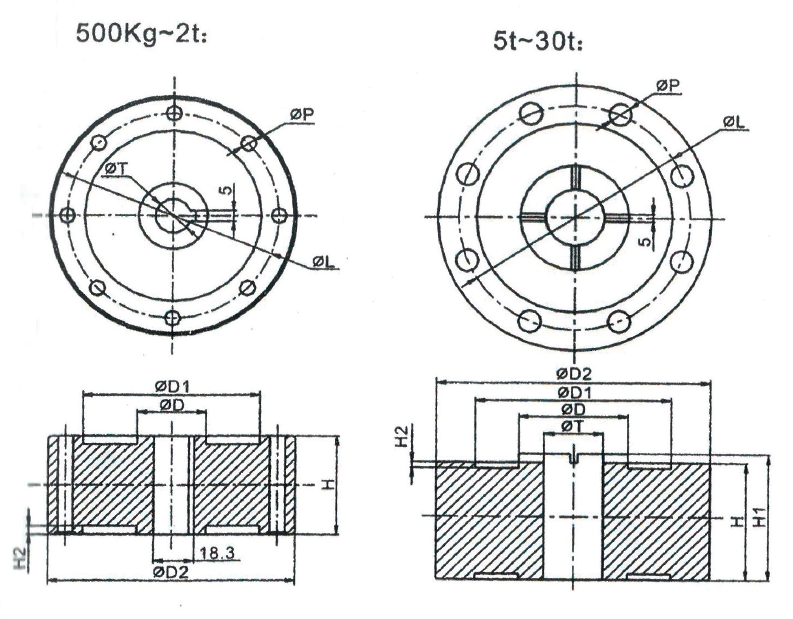

5KN/10KN/20KN

31

80

112

46

/

4

16

96

7

50KN/100KN

48

84

130

55

61

4

32

105

14

200KN/300KN

72

130

182

80

86

4

39

154

15
