JFL-ZAM1 load cell force sensor

1

Model

JFL-ZAM1

2

Capacity

20KN,50KN,100KN,300KN,500KN,1000KN,2000KN,3000KN

3

Accuracy

0.05%F.S

4

Output sensitivity

2.0   MV/V

5

Creep

0.05%F.S/30min

6

Zero-point output

±1%F.S

7

Temperature effect on zero

±0.03%F.S/10℃

8

Temperature effect on output

±0.05%F.S/10℃

9

Working temperature

-10 to +65℃

10

Input resistance

750±10Ω

11

Output resistance

700±5Ω

12

Insulation resistance

＞5000MΩ

13

Safe overload range

150%

14

Excitation voltage

10VDC

15

Material

Good quality alloy steel

16

Wire connection

Power   +(red), power –(black),

signal   + (green), signal –(white)

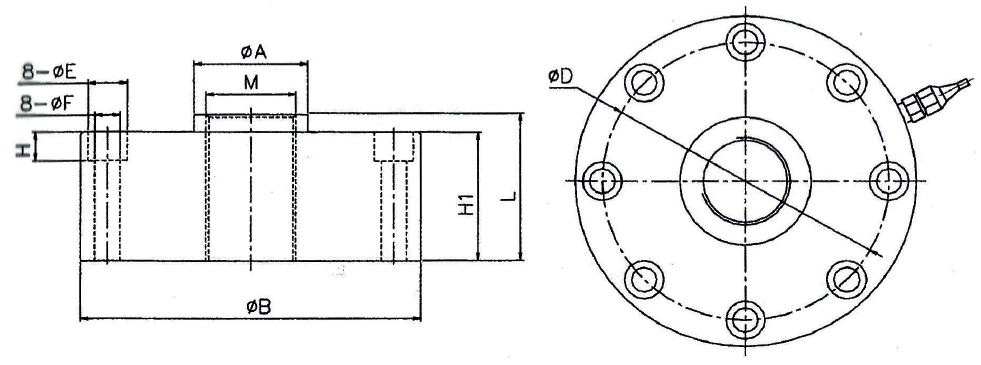

20-50

2-5

34

M16x1.5

46

32

105

88.9

105

7.5

9.2

100-300

10-30

41

M31x1.5

53

47

122

101.7

14

9

10.5

500

50

51

M40x1.5

57.6

51

143

117

17

10.5

16

1000

100

76

M64x3

83

70

200

162.6

20

13

18

2000

200

120

M90x3

125

120

306

264

32

22

26

3000

300

150

M120x3

185

180

350

296

38

26

32
