JFL-7E16 force measuring sensor load cell

1

Model

JFL-TK8

2

Capacity(KN)

0.5,5,10,20,50,100,200,300,500,600,1000,2000

3

Accuracy

0.05%F.S, 0.1%F.S.

4

Output sensitivity

2.0   MV/V

5

Creep

0.05%F.S/30min

6

Zero-point output

±1%F.S

7

Temperature effect on zero

±0.03%F.S/10℃

8

Temperature effect on output

±0.05%F.S/10℃

9

Working temperature

-10 to +65℃

10

Input resistance

750±10Ω

11

Output resistance

700±5Ω

12

Insulation resistance

＞5000MΩ

13

Safe overload range

150%

14

Excitation voltage

10VDC

15

Material

Good quality alloy steel

16

Wire connection

Power   +(red), power –(black),

signal   + (green), signal –(white)

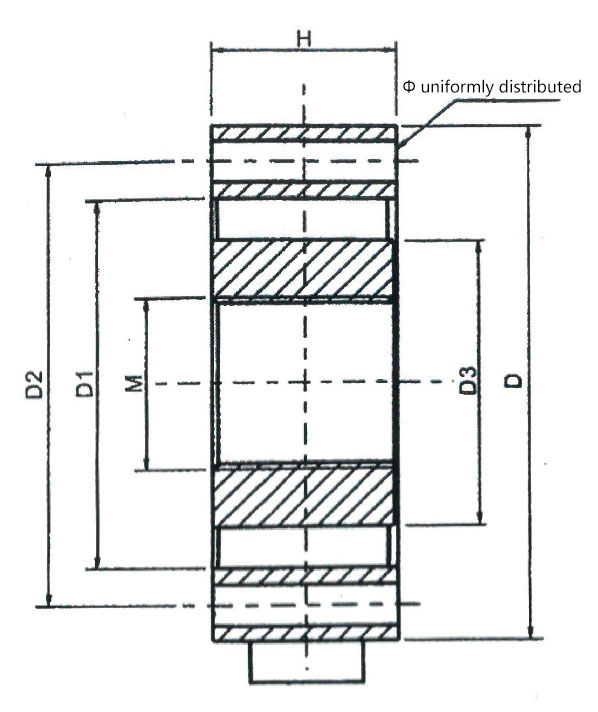

0.5-5

0.05-0.5

90

25

75

61

M16x1.5

25

4-Φ7

10

1

112

35

96

72

M20x2

30

8-Φ9

20

2

125

44

105

93

M24x2

42

8-Φ11

50-100

5-10

150

48

122

96

M30x2

45

8-Φ11

200-300

20-30

180

70

142

110

M42x3

53

16-Φ13.5

500-600

50-60

234

97

194

147

M64x3

60

16-Φ21.5

1000

100

320

162

270

220

M96x4

85

16-Φ26

2000

200

350

266

300

174

M120x3

90

16-Φ22
