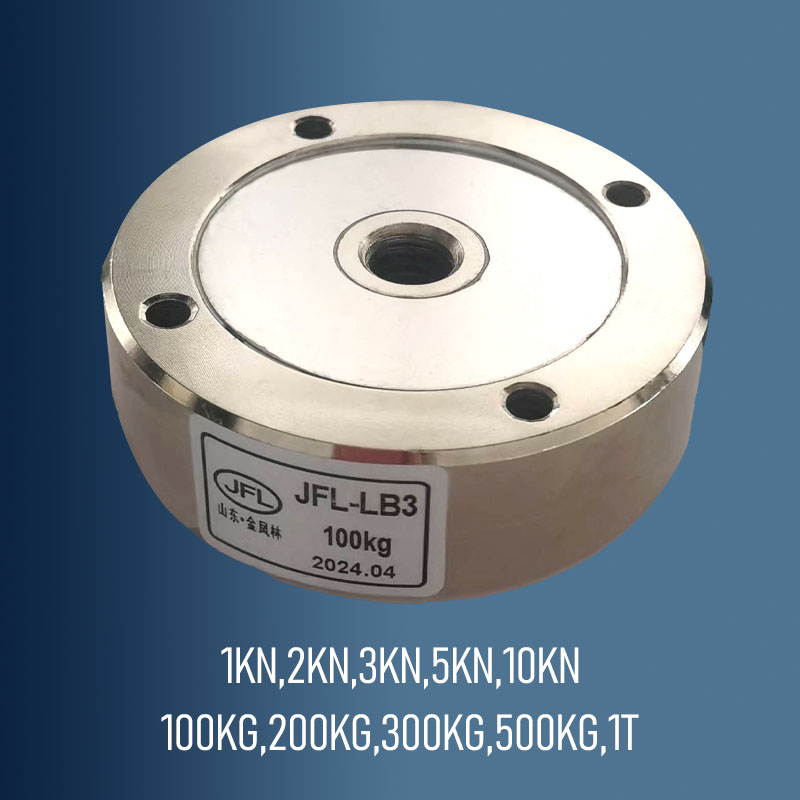

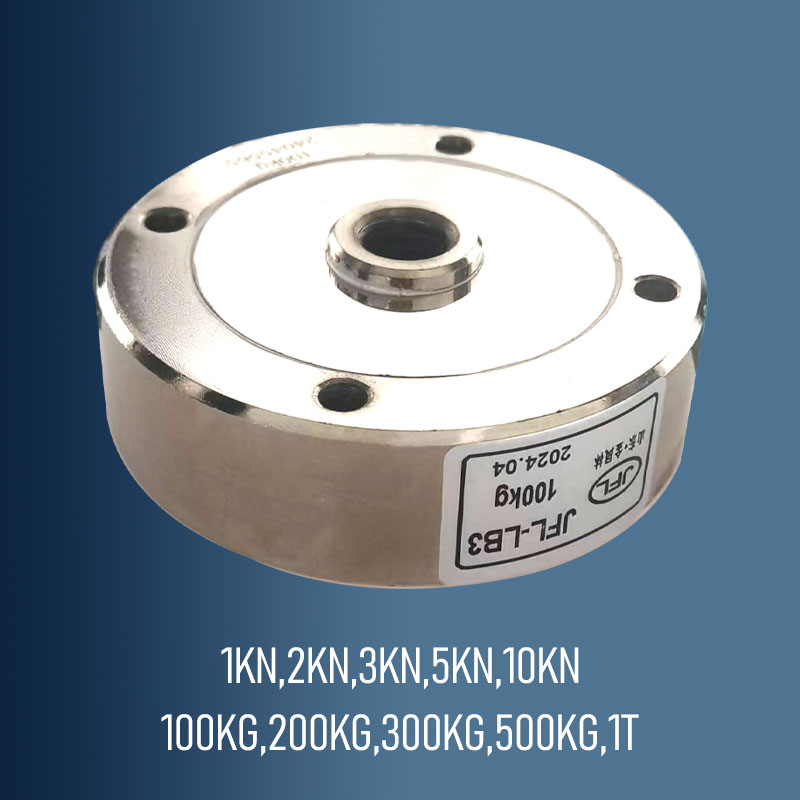

JFL-LB3 force measuring weight sensor load cell

1

Model

JFL-LB3

2

Capacity(KN)

1, 2, 3, 5, 10

3

Accuracy

0.05%F.S

4

Output sensitivity

2.0   MV/V

5

Creep

0.05%F.S/30min

6

Zero-point output

±1%F.S

7

Temperature effect on zero

±0.03%F.S/10℃

8

Temperature effect on output

±0.05%F.S/10℃

9

Working temperature

-10 to +65℃

10

Input resistance

750±10Ω

11

Output resistance

700±5Ω

12

Insulation resistance

＞5000MΩ

13

Safe overload range

150%

14

Excitation voltage

10VDC

15

Material

Good quality alloy steel

16

Wire connection

Power   +(red), power –(black),

signal   + (green), signal –(white)
