JFL-1516C load cell weight sensor for construction machinery

Model:   JFL-1516C

Material:   high quality alloy steel

Capacity:   0.1T-3T

Output resistance:350±3Ω

Output   sensitivity;2.0±10%MV/V

Input   resistance: 375± 10Ω

Zero   point output:±1%F.S.

Comprehensive   error:≤±0.03%

Non-linear:   0.03%F.S.

Repeatability:   0.03%F.S.

Excitation   voltage:5-15v

Working   temperature:-20℃ to +60℃

Safe overload:150%

Ultimate   overload:200%

Cable:Φ5.0x3.5m

Insulation   resistance:≥5000MΩ(50V)

Wire   connection:  red:   power +, black: power -, green: signal +, white: signal -

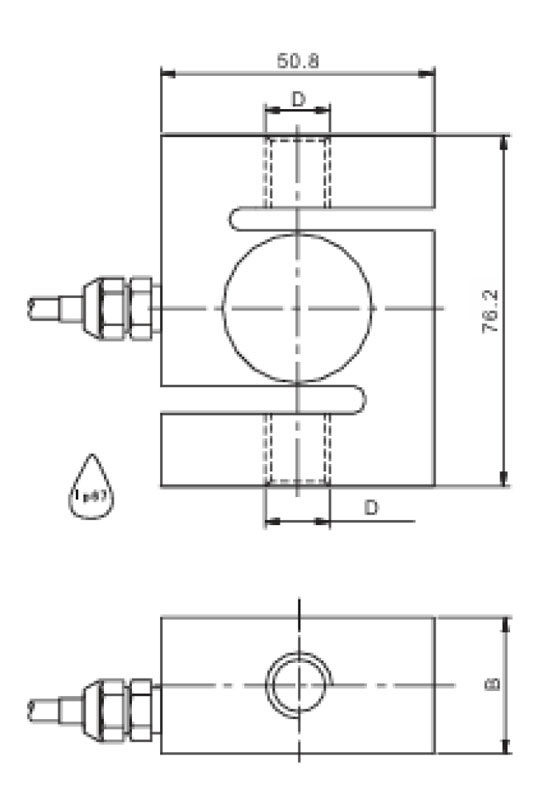

100kg-300kg

19.05

M12x1.75

500kg

25.4

M12x1.75

1t-2t

25.4

M16x2
