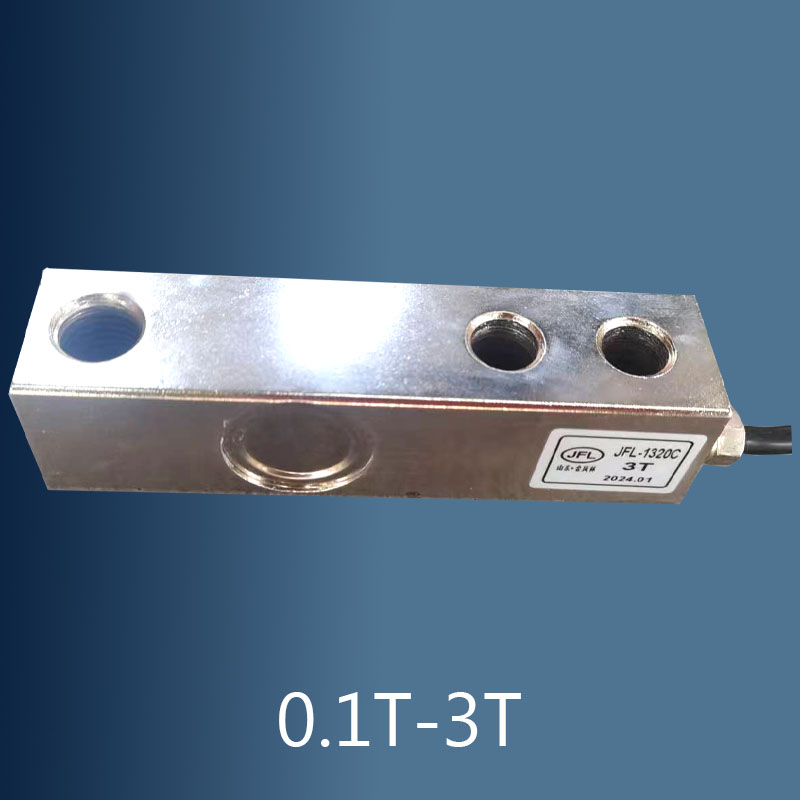

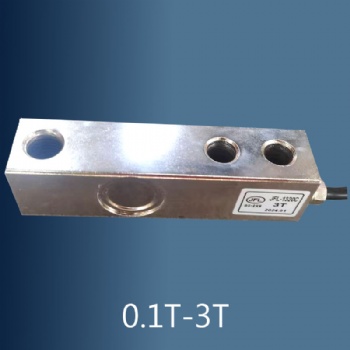

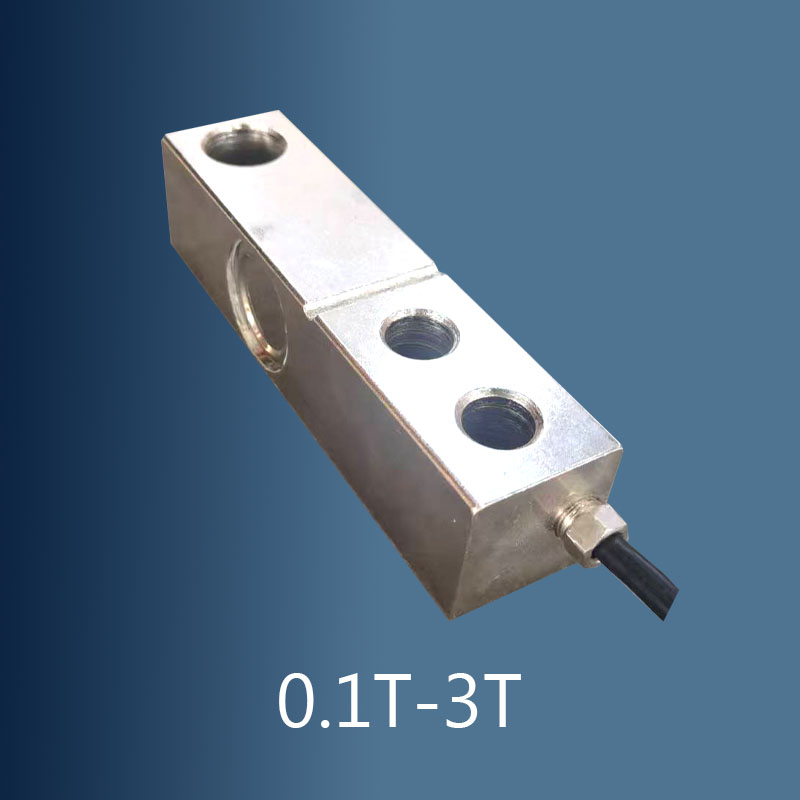

JFL-1320C load cell weight sensor for construction machinery

Model: JFL-1320C

Material: high quality alloy steel

Capacity: 0.1T-3T

Output resistance:350±3Ω

Output sensitivity;2.0±10%MV/V

Input resistance: 375± 10Ω

Zero point output:±1%F.S.

Comprehensive error:≤±0.03%

Non-linear: 0.03%F.S.

Repeatability: 0.03%F.S.

Excitation voltage:5-15v

Working temperature:-20℃ to +70℃

Safe overload:150%

Ultimate overload:200%

Cable:Φ5.0x3.5m

Insulation resistance:≥5000MΩ(50V)

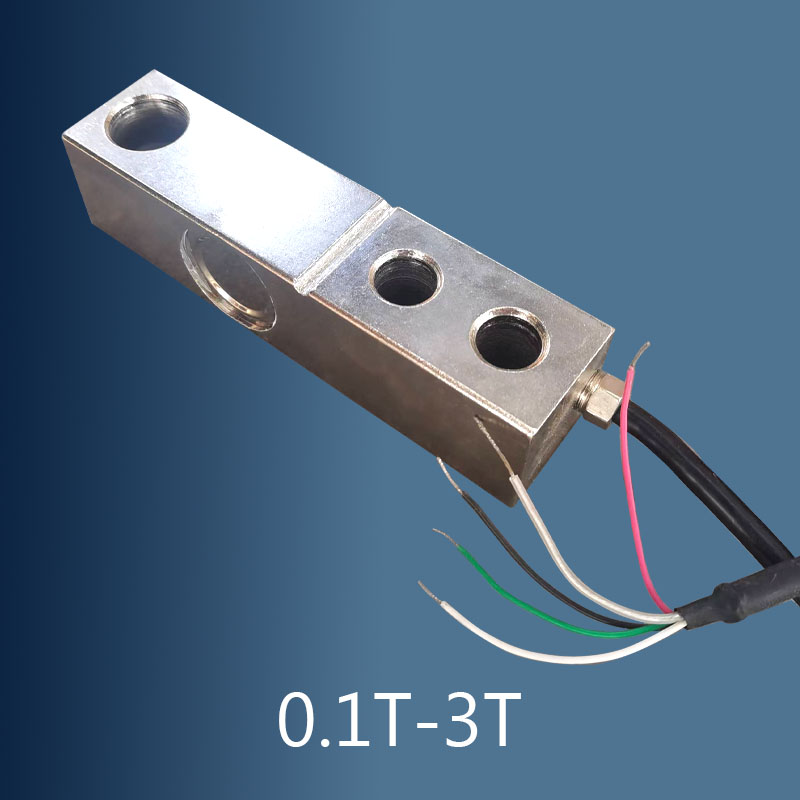

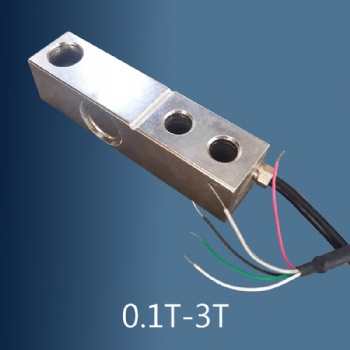

Wire connection:  red:   power +, black: power -, green: signal +, white: signal -
