JFL-1320CF explosion proof weighing module

Model: JFL-1320CF

Material: high quality alloy steel / SS

Capacity: 0.5T-3T

Output resistance:350±3Ω

Output sensitivity;2.0±10%MV/V

Input resistance: 375± 10Ω

Zero point   output:±1%F.S.

Comprehensive error:≤±0.03%

Non-linear: 0.03%F.S.

Repeatability: 0.03%F.S.

Excitation   voltage:5-15v

Working temperature:-20℃ to +60℃

Safe overload:150%

Ultimate overload:200%

Cable:Φ5.7x3.5m

Insulation resistance:≥5000MΩ(50V)

Wire connection:  red: power +, black: power -

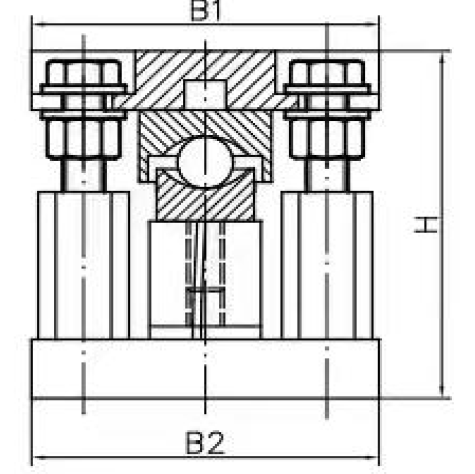

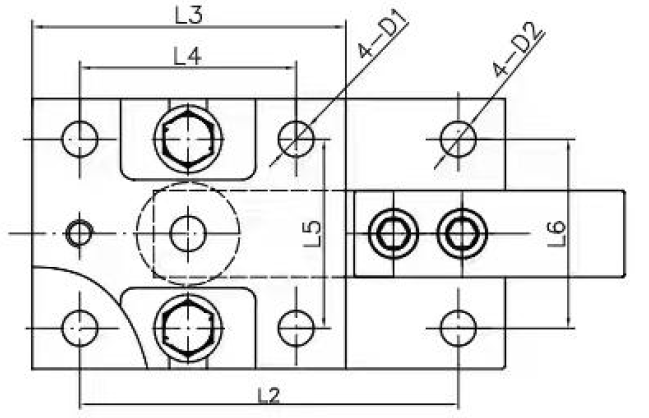

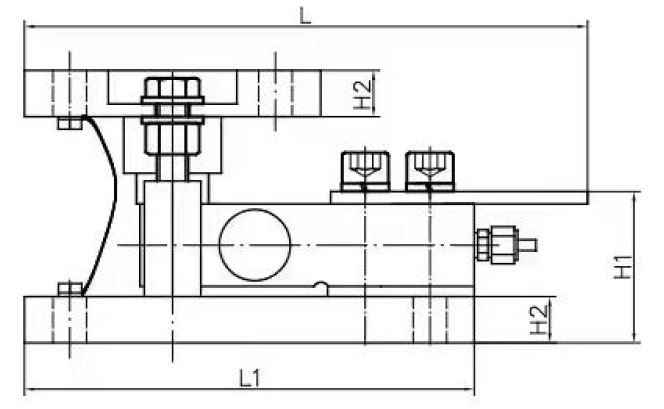

0.5/1/2

106

58

18

100

100

Φ13

Φ13

210

175

140

116

80

70

70

3

135

73

23

160

160

Φ17

Φ17

270

235

200

150

100

90

90
