JFL-19N flange weighing module
JFL-19N flange weighing module.pdf
specification
Model: JFL-19N | Material: high quality alloy steel / SS | |
Capacity: 20T-30T | Output resistance:350±3Ω | |
Output sensitivity;2.0±10%MV/V | Input resistance: 375± 10Ω | |
Zero point output:±1%F.S. | Comprehensive error:≤±0.03% | |
Non-linear: 0.03%F.S. | Repeatability: 0.03%F.S. | |
Excitation voltage:5-15v | Working temperature:-20℃ to +60℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable:Φ5.7x3.5m | Insulation resistance:≥5000MΩ(50V) | |
Wire connection: red: power +, black: power - | ||

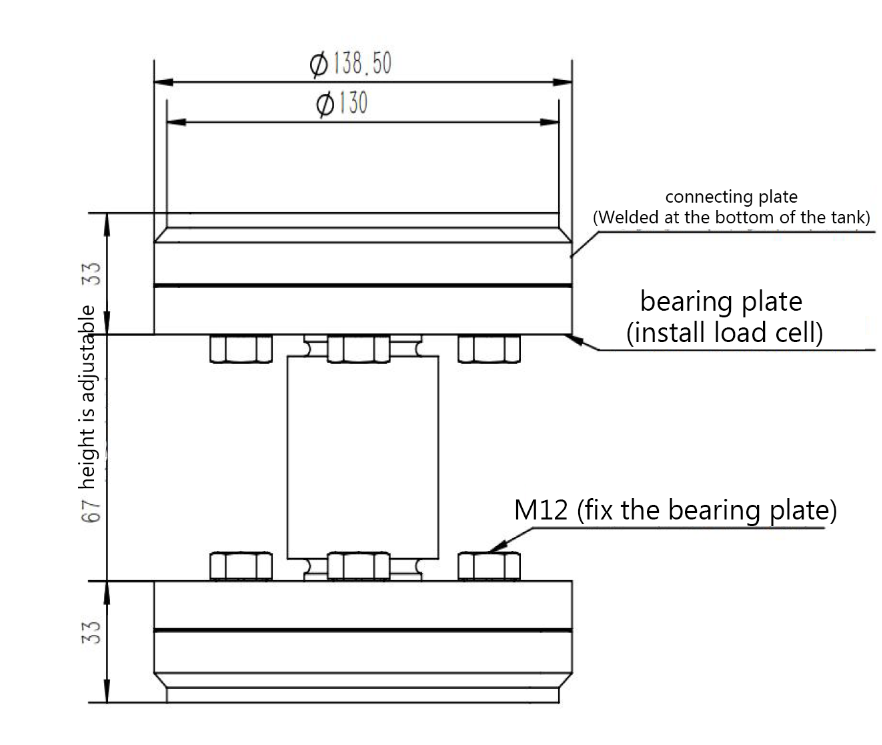

size information
high precision weighing module for laboratory, weighing module for custom weighing solutions, weighing module for material weigh stations, compact weighing module, weighing module with automatic tare function, weighing module for load management
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
Tags: weight sensor , force sensor , load cell , junction box , weight indicator
