JFL-1320C disc tytpe weighing module
JFL-1320C disc tytpe weighing module.pdf
specification
Model: JFL-1320C | Material: high quality alloy steel / SS | |
Capacity: 0.5T-3T | Output resistance:350±3Ω | |
Output sensitivity;2.0±10%MV/V | Input resistance: 375± 10Ω | |
Zero point output:±1%F.S. | Comprehensive error:≤±0.03% | |
Non-linear: 0.03%F.S. | Repeatability: 0.03%F.S. | |
Excitation voltage:5-15v | Working temperature:-20℃ to +60℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable:Φ5.7x3.5m | Insulation resistance:≥5000MΩ(50V) | |
Wire connection: red: power +, black: power - | ||

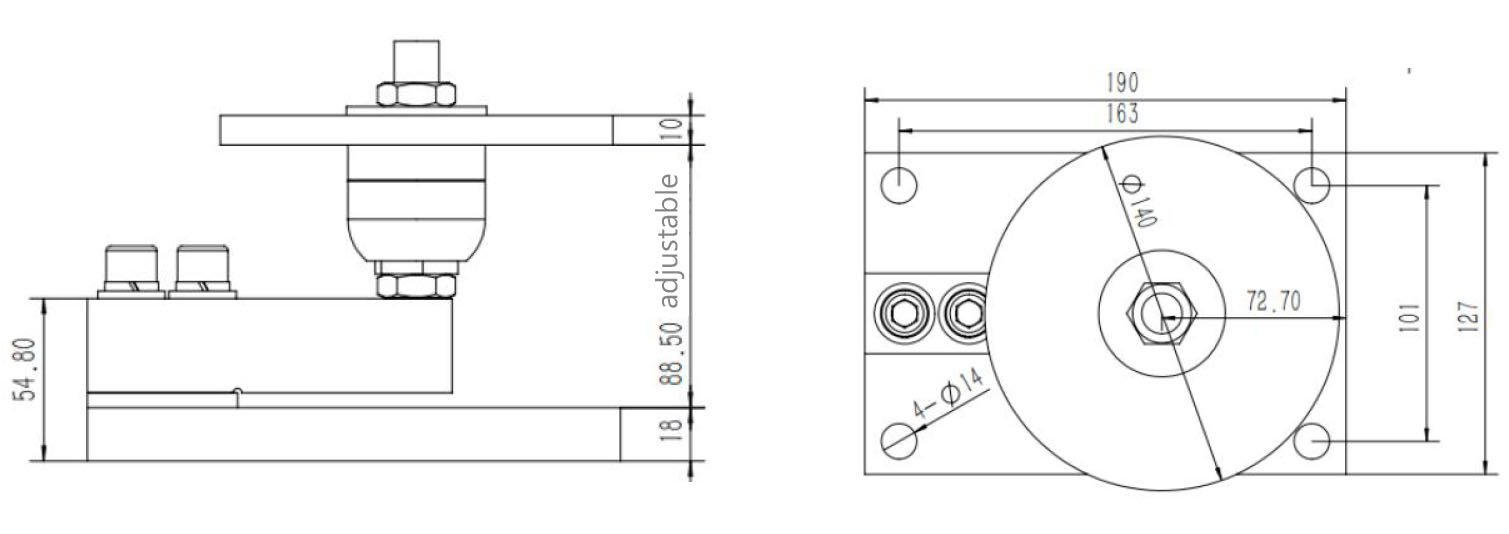

size information
Weighing module for conveyor belt weighing,Weighing module with USB interface,Weighing module for high-speed sorting systems,Weighing module for dynamic weighing,Weighing module for truck weight monitoring,Weighing module for precise material weighing,Weighing module for dust collection systems,Weighing module for food processing equipment,Weighing module for medical and pharmaceutical applications,Weighing module for bulk powder handling,Disc-type weighing module,JFL-1320C weighing module,Industrial weighing system,Precision weighing module,Load cell module,Weighing module for industrial applications,Heavy-duty weighing module,Digital weighing module,Weighing technology,Load cell disc-type module,High-accuracy weighing module,Weighing sensor module,JFL-1320C load cell,Weighing solutions for manufacturing,Industrial load cell module,Durable weighing equipment,Weighing modules for automation,Weighing technology solutions
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
