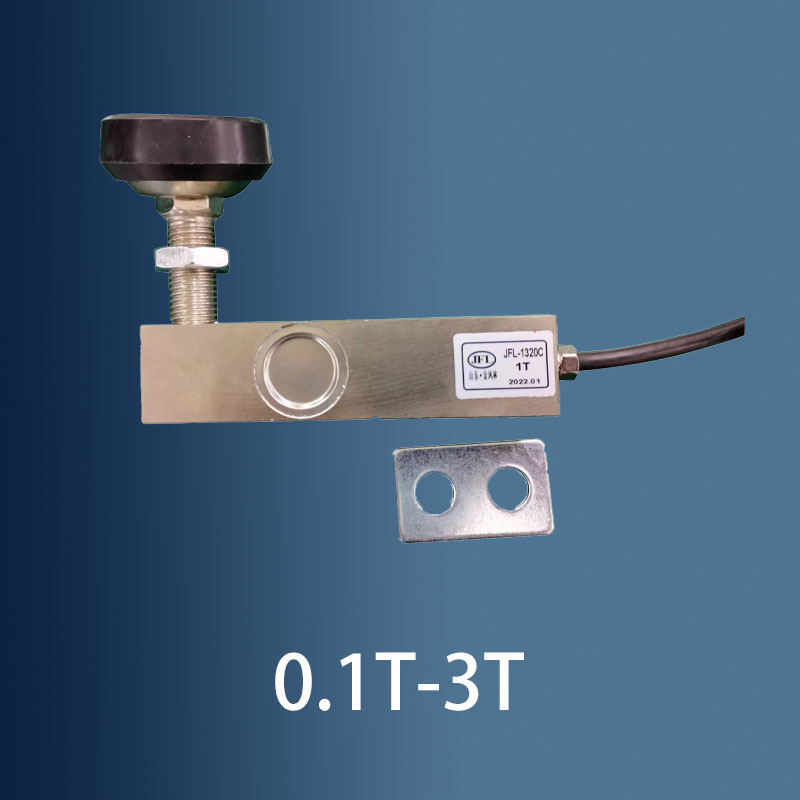

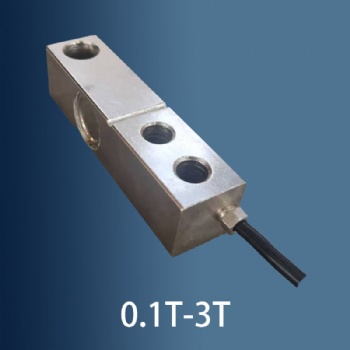

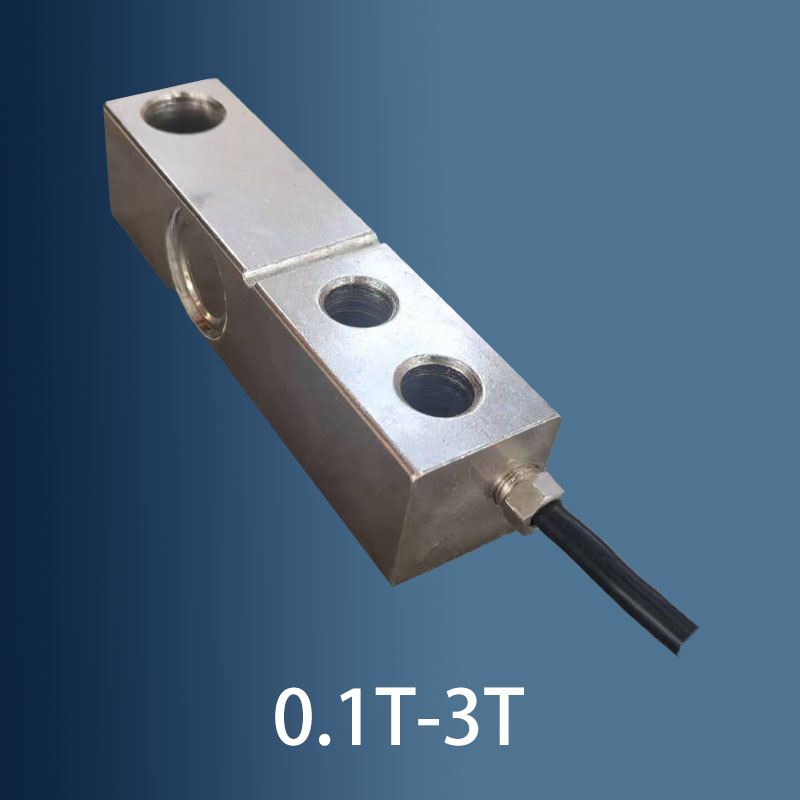

JFL-1320C weight sensor for small ground scale
JFL-1320C weight sensor for small ground scale.pdf
1. introductions
l Cantilever beam weight sensor, also called shear beam weight sensor, simple and easy to install
l High reliability, stable and accurate weighing, long working time, high cost-effectiveness
l Can choose analog model or digital model
l suitable for truck scale, small ground scale, feeding tank, construction machinery, etc.
2.specification
Technical parameters | ||
Model: JFL-1320C | Material: good quality alloy steel | |
Capacity: 0.1T-3T | Output resistance:350±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 375±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.0x3.5m | Insulation resistance:≥5000MΩ(50V) | |

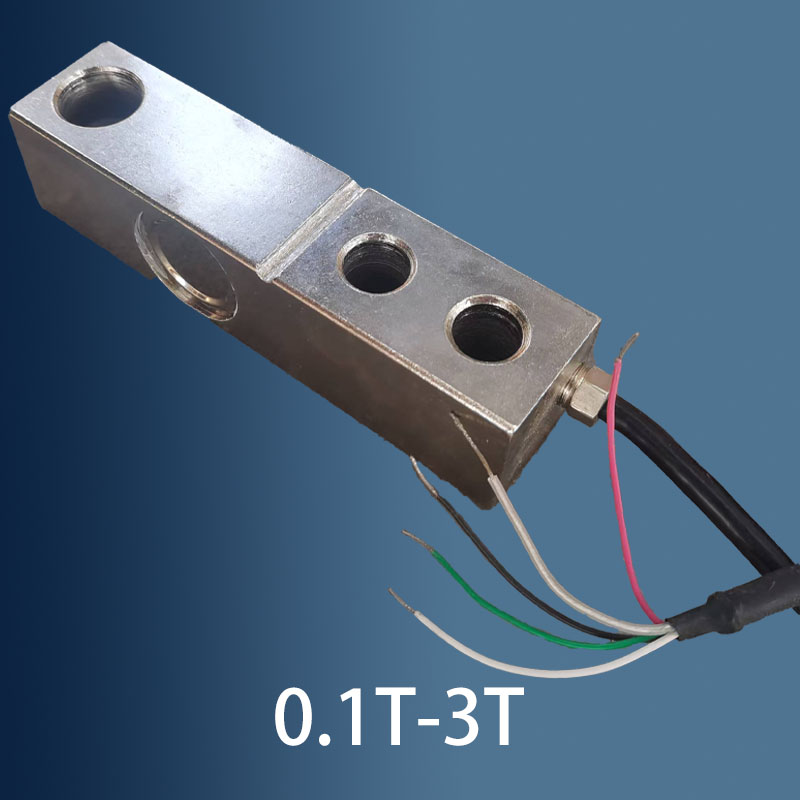

Cable connection: red: Power + ; black: Power - ; green: signal + ; white: signal - (can be 6 core wire) | ||

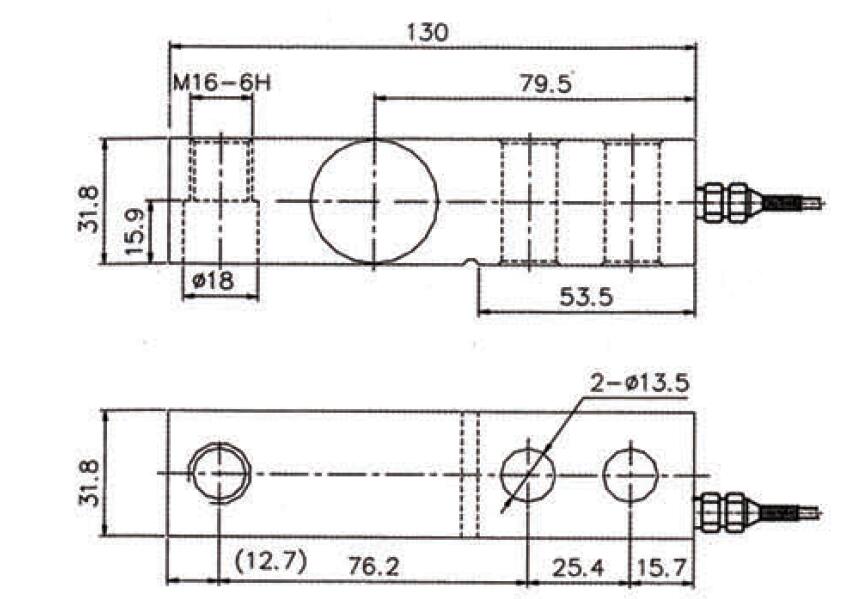

3. size information
4. some cases
