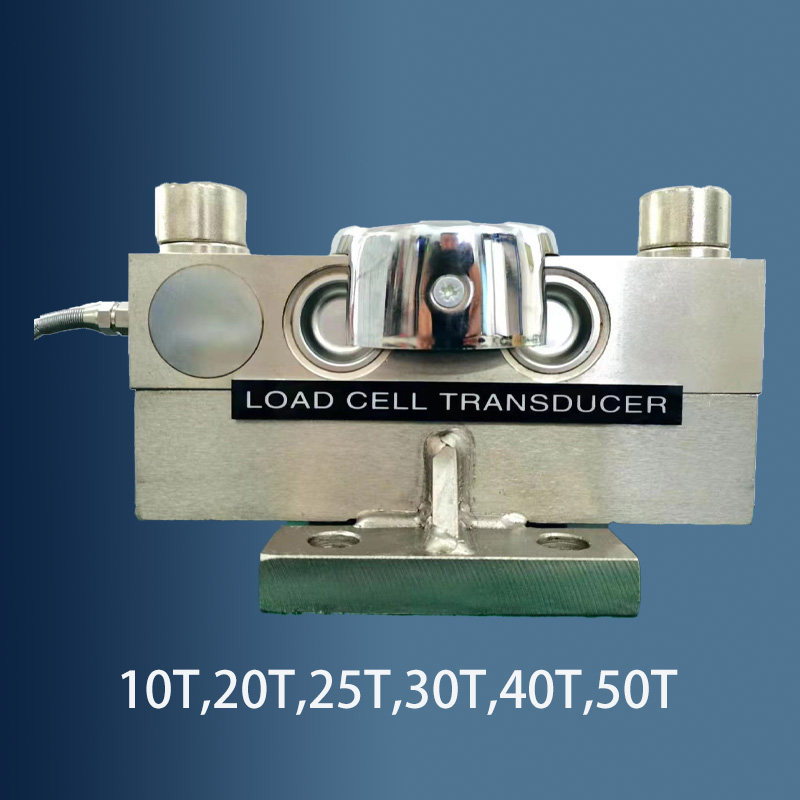

JFL-19 white basement bridge weight sensor load cell
JFL-19 white basement bridge weight sensor load cell.pdf
1. introductions
l Bridge type, classic model for truck scales
l Install convenient, high reliability, stable and accurate weighing, long working time, high cost-effectiveness
l Can choose analog model, digital model, anti-lightning model, low temperature resistance model, high temperature resistance model
l suitable for truck scale, platform scale, railway scale, etc.
2.specification
Technical parameters | ||
Model: JFL-19 | Material: good quality alloy steel | |
Capacity: 20T-50T | Output resistance:700±3Ω | |
Output sensitivity:2.0±10%MV/V | Input resistance: 750±10Ω | |
Zero point output:±1%FS | Comprehensive error:≤±0.03% | |
Nonlinear: 0.03%FS | Repeatability: 0.03%FS | |
Excitation voltage:5-15V | Working temperature range: -20℃ to +70℃ | |
Safe overload:150% | Ultimate overload:200% | |
Cable: φ5.7x16m, φ5.7x12m, φ5.7x18m | Insulation resistance:≥5000MΩ(50V) | |
Cable connection: red: Power + black: Power - green: signal + white: signal - (can be 6 core wire) | ||

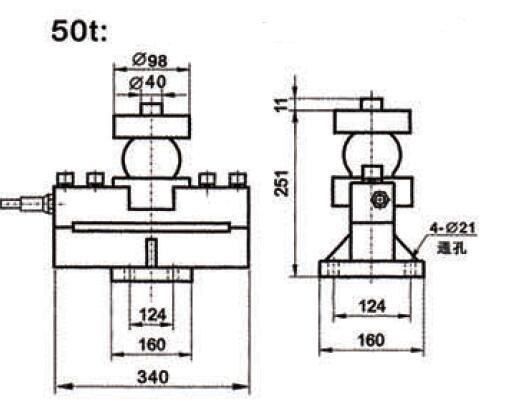

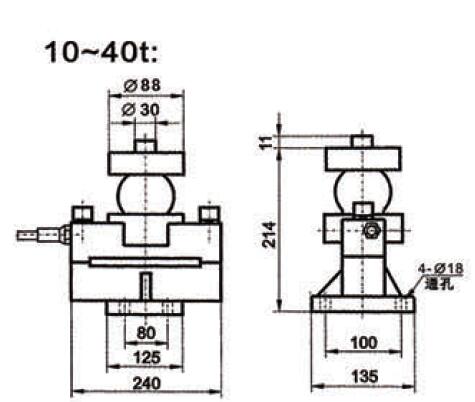

3. size information
4. some cases
china corrosion resistant load cell factory price manufacturer, china load cells for manufacturing factory price manufacturer, china load cells for agriculture factory price manufacturer, china load cells for logistics factory price manufacturer, china load cells for aerospace factory price manufacturer
We produce robust and well-designed load cells with up to C3 accuracy guarantee highly accurate and reliable data! Used in a variety of industries requiring precise measurements, avoiding product waste and saving costs.
