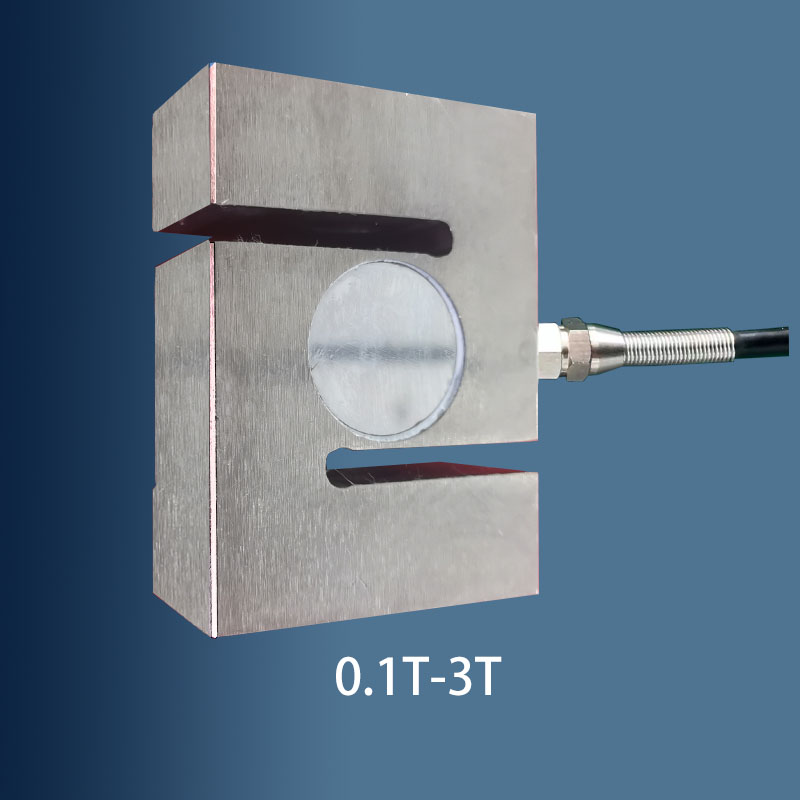

JFL-1528C load cell weight sensor for construction machinery

Model:   JFL-1528C

Material:   high quality alloy steel

Capacity:   0.1T-3T

Output   resistance:350±3Ω

Output sensitivity;2.0±10%MV/V

Input   resistance: 375± 10Ω

Zero   point output:±1%F.S.

Comprehensive   error:≤±0.03%

Non-linear:   0.03%F.S.

Repeatability:   0.03%F.S.

Excitation   voltage:5-15v

Working   temperature:-20℃ to +60℃

Safe   overload:150%

Ultimate   overload:200%

Cable:Φ5.0x3.5m

Insulation   resistance:≥5000MΩ(50V)

Wire   connection: red: power +; black: power -; green: signal +; white: signal -

Customize   output format: 4-20MA. 0-5V,0-10V, RS485
