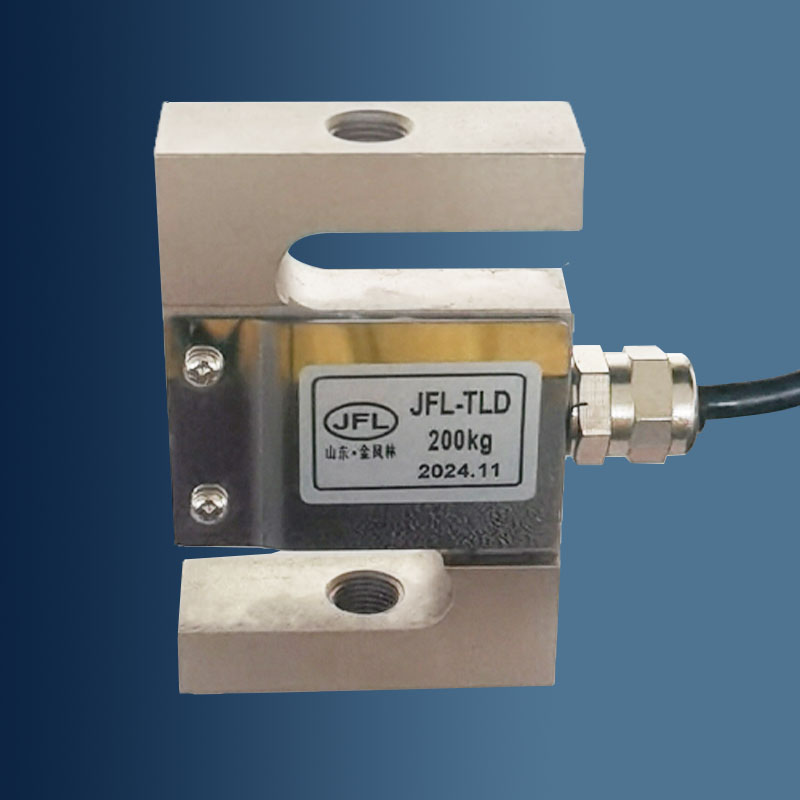

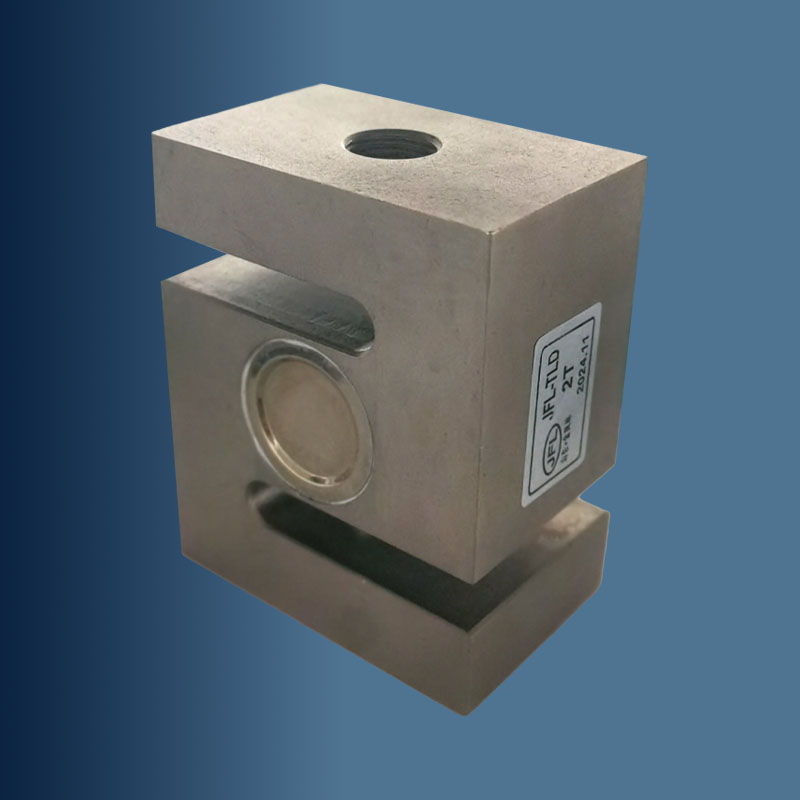

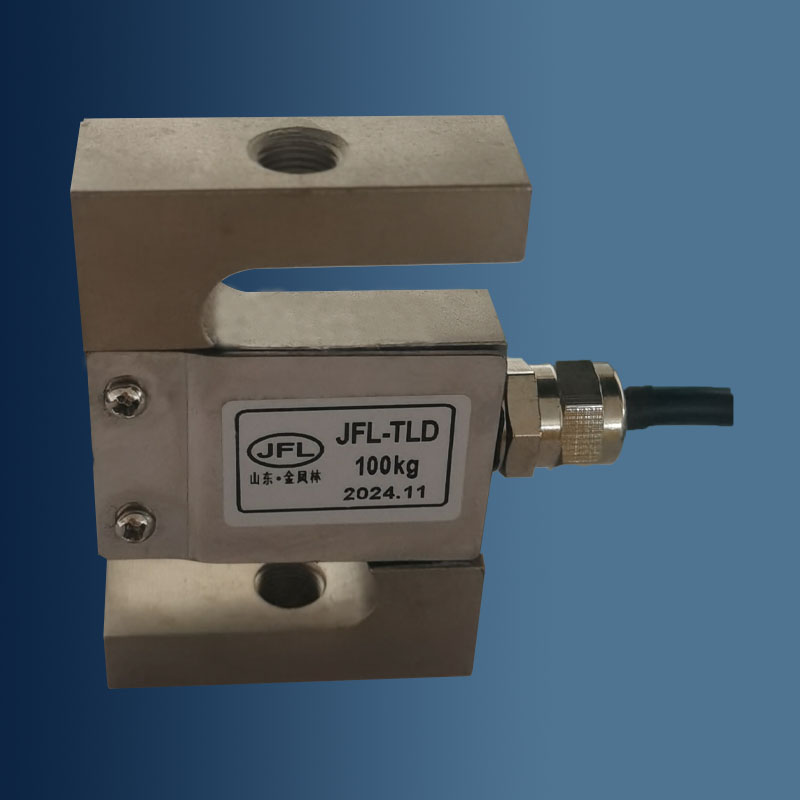

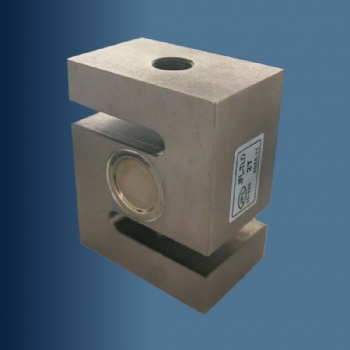

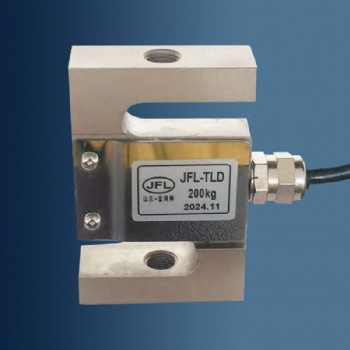

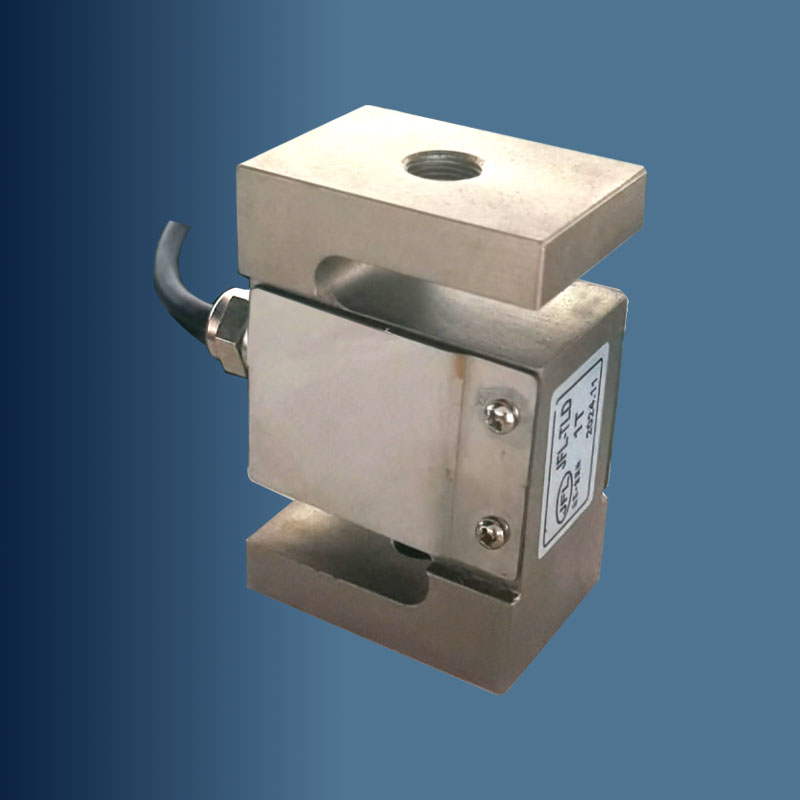

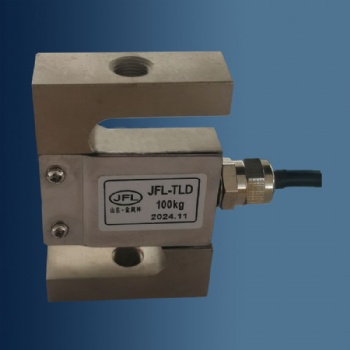

JFL-TLD load cell weight sensor for construction machinery

Model: JFL-TLD

Material: high quality alloy steel / SS

Capacity: 50kg-5T

Output resistance:350±3Ω

Output sensitivity;2.0±10%MV/V

Input resistance: 377± 10Ω

Zero point output:±1%F.S.

Comprehensive error:≤±0.03%

Non-linear: 0.03%F.S.

Repeatability: 0.03%F.S.

Excitation voltage:5-15v

Working temperature:-20℃ to +60℃

Safe overload:150%

Ultimate overload:200%

Cable:Φ5.7x3.5m

Insulation resistance:≥5000MΩ(50V)

Wire connection: Green: E+, Black: E-, Yellow:   Feedback +, Blue: Feedback -, White: S+, Red: S-, Yellow(thick): shield

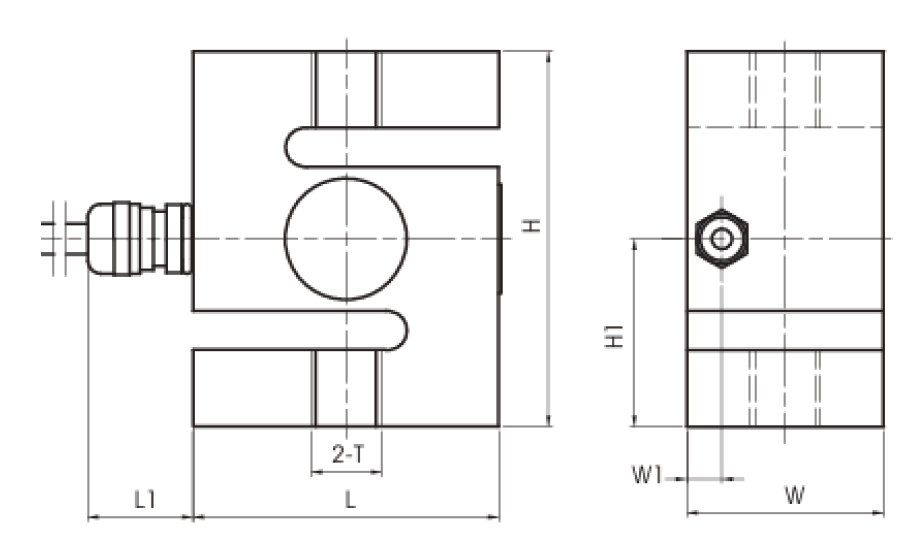

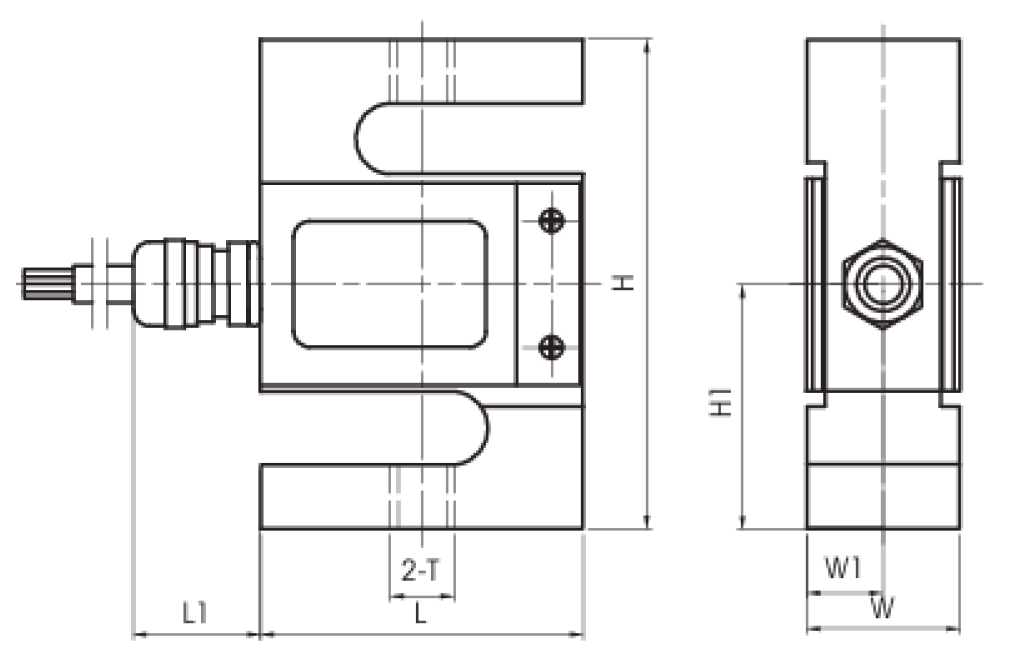

L

H

W

T

W1

H1

L1

50,100,200

50.8

77

18.5

M10x1

9.3

38.5

17

300

50.8

77

24.4

M10x1

12.2

38.5

17

500

50.8

77

24.4

M12x1

12.2

38.5

17

1000

50.8

77

36

M12x1

18

38.5

17

2000

70

86

45

M16x1.5

8

43

17

3000

80

100

50

M18x1.5

8

50

17

5000

92

130

58

M20x2

8

65

17
