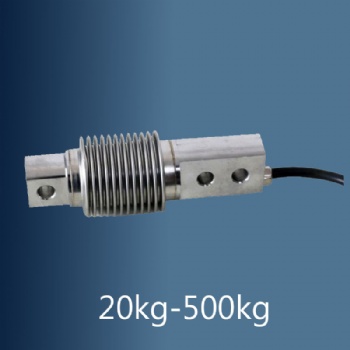

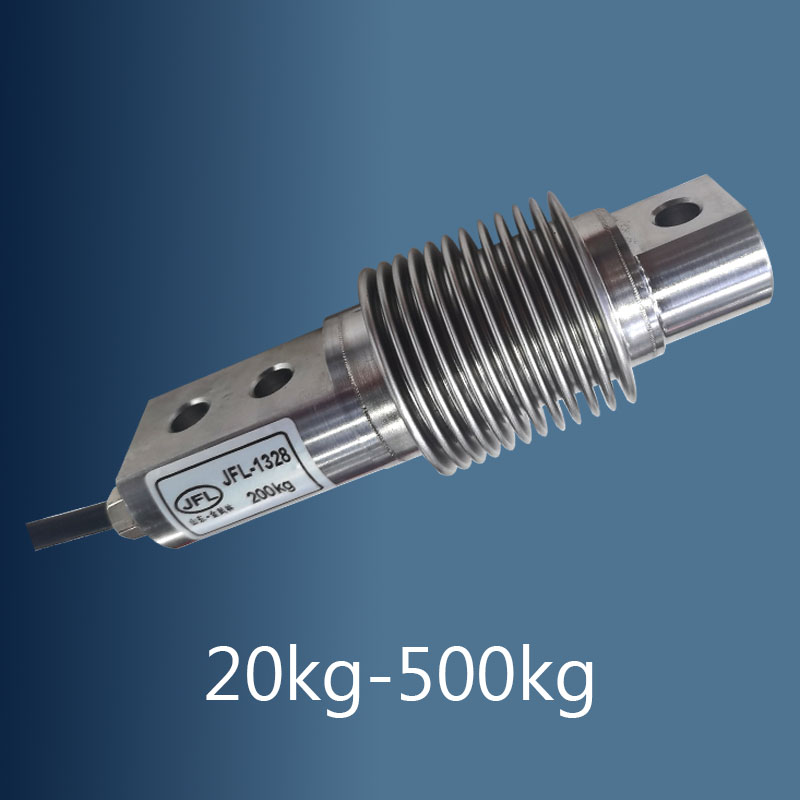

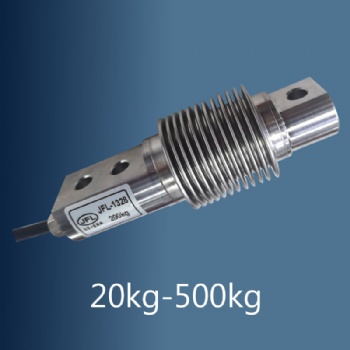

JFL-1328 load cell weight sensor for packaging machine

Model:   JFL-1328

Material:   high quality alloy steel / SS

Capacity:   20kg-500kg

Output resistance:350±3Ω

Output   sensitivity;2.0±10%MV/V

Input   resistance: 375± 10Ω

Zero   point output:±1%F.S.

Comprehensive   error:≤±0.03%

Non-linear:   0.03%F.S.

Repeatability:   0.03%F.S.

Excitation   voltage:5-15v

Working   temperature:-20℃ to +70℃

Safe overload:150%

Ultimate   overload:200%

Cable:Φ5.7x3.5m

Insulation   resistance:≥5000MΩ(50V)

Wire   connection:  red:   power +, black: power -, green: signal +, white: signal -
